Premium Construction: Insulation is high heat and moisture resistant - 14 AWG THHN / THWN PVC & Nylon jacket - Indoor and Outdoor rated (600 Volt, 15 Amp, 90 C/194 F)
UL Listed and Approved: Works well for a variety of Home, Office, Residential, Commerical, Industrial, and other applications; Provides a flexible solution for long installation runs
For Electrical Grounding: Approved for major CATV and Satellite providers, and is compatible with: Comcast (Xfinity) DirecTV, Satellite Dish, Charter, Spectrum, Cox Cable TV & Verizon FIOS
Quality Assurance: UL Listed and CSA certified, with RoSH and many other certifications; Proudly manufactured in the United States
Wire Length: 10 Feet (3 Meter)
Wire Length: 10 Feet
Wire Length: 120 Inches
Wire Length: 3 Meters
Wire Length: 3 Yards
Wire Shape: Round Coiled Wire
Wire Thickness: 1.63 MM (Millimeters)
Wire Thickness: 0.06 IN (Inches)
Wire Thickness: 14 AWG (American Wire Gauge)
Wire Thickness: 61 MILs (Thousands of an Inch)
Center Conductor: Solid Wire
Center Conductor: Copper
Center Conductor: 14 AWG (American Wire Gauge)
Center Conductor: 1 Strands
Center Conductor: 1 Conductors
Connection Split/Duplication: One to One (1:1)
Jacket Material: PVC with Oil and Gas Resistant Coating
Maximum Voltage: 600 Volts
Maximum Amperage: 15 Amps
Temperature Range (C): -40 to 90 C
Temperature Range (F): -40 to 194 F

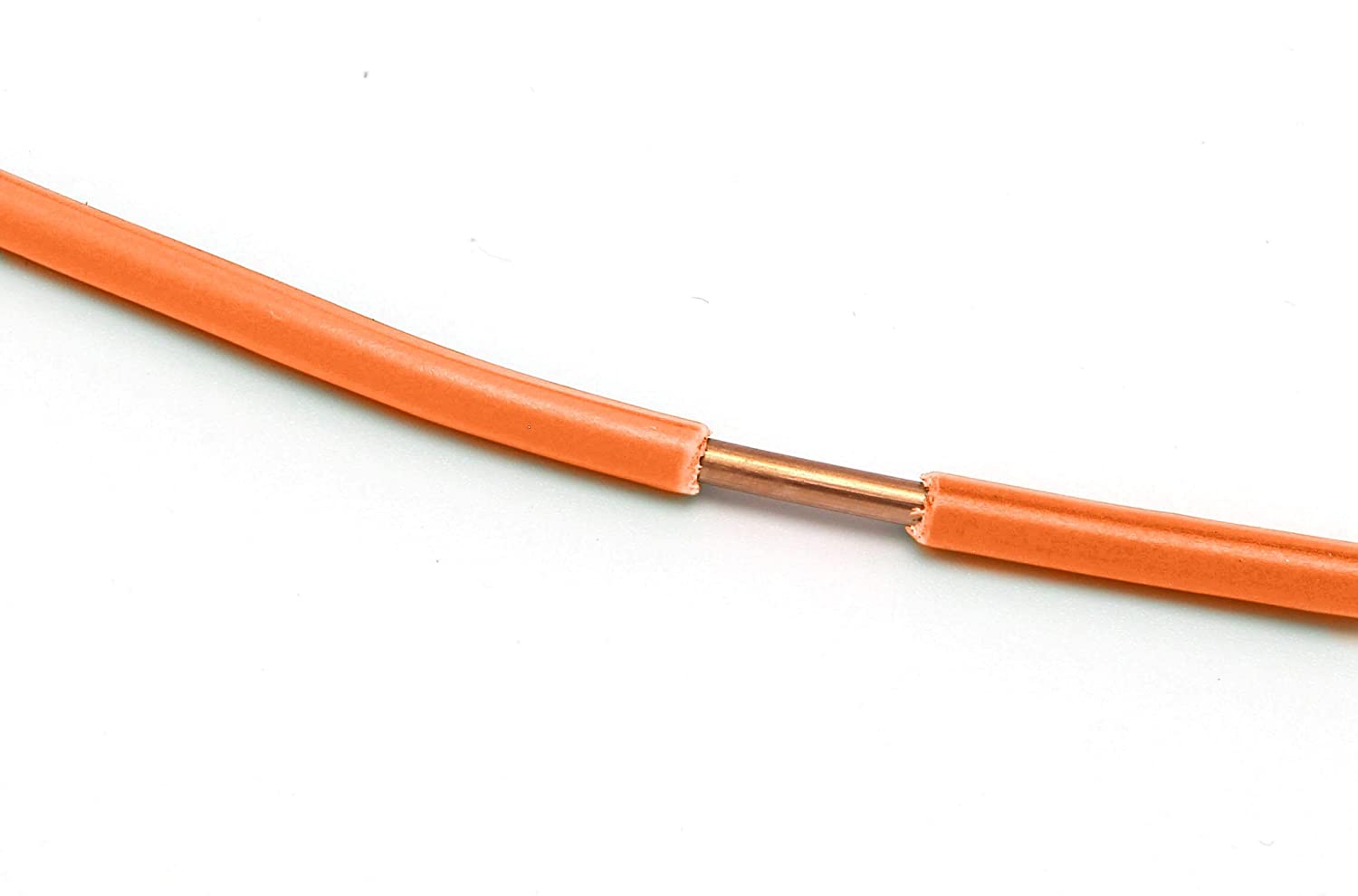

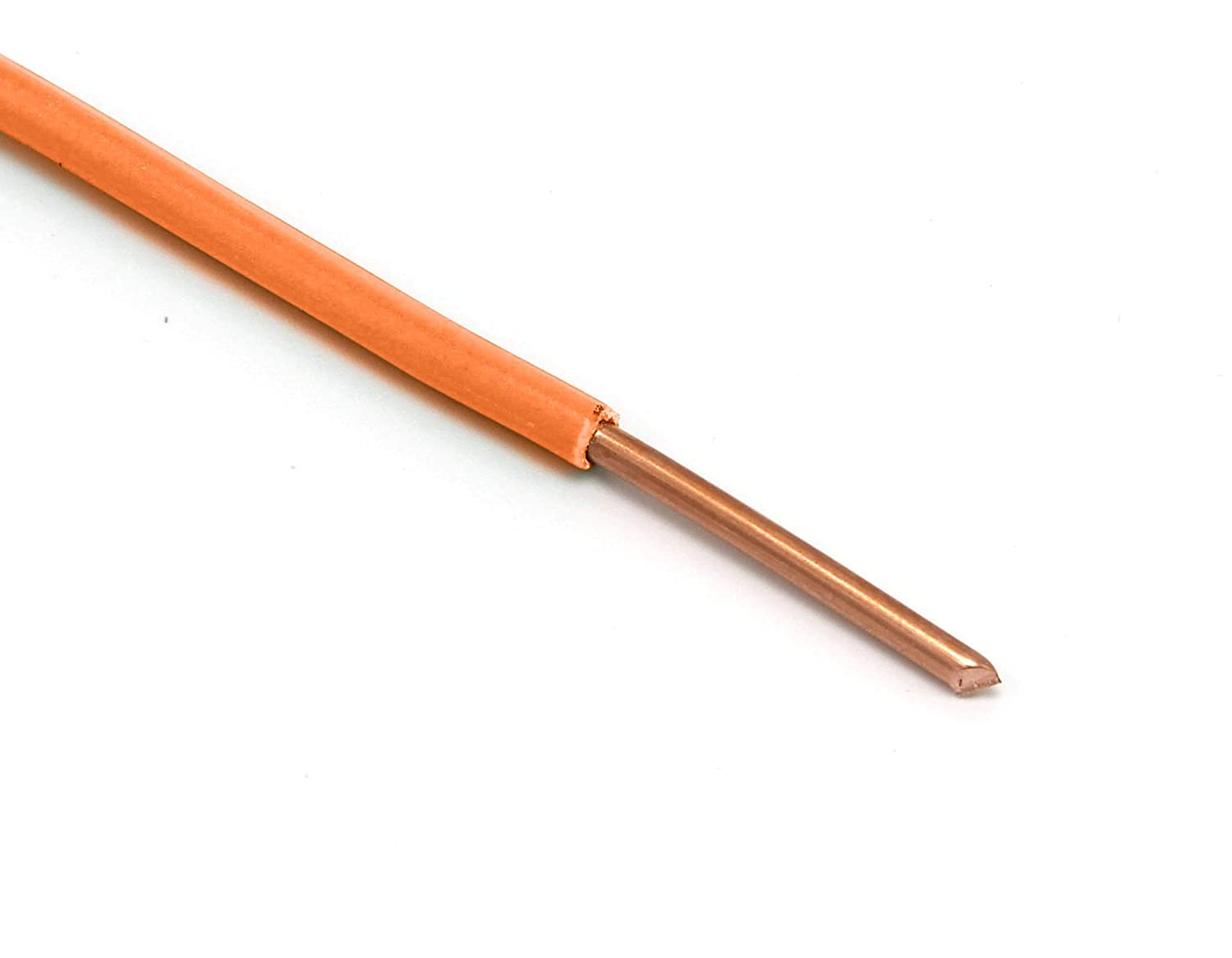

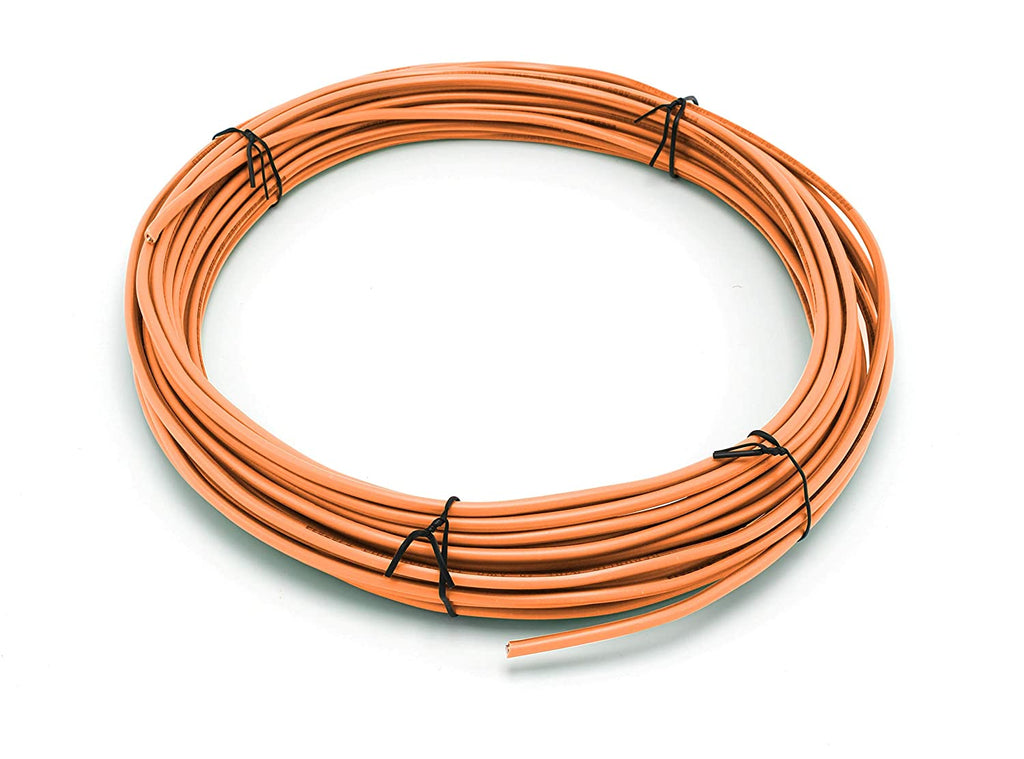

Introducing the Indoor / Outdoor UV jacketed Copper THHN Wire by THE CIMPLE CO This high quality and heavy duty electrical wire can be used in conjunction with other grounding supplies to protect against lighting strikes and power surges. The center conductor is made of high grade Solid Copper (SC). The use of solid-copper allows for very low voltage drop along the center conductor over long runs, and offer great grounding properties. Multi-Purpose building wire is a great wire, that has many uses - including cable trays, conduit, service, feeders, and branches. Works in Industrial, Commercial, and Residential applications.
THHN / THWN
Conductor for: NM-B, UF-B, SER, SEU, and MC
Ground or Grounding Wire
Annealed / Soft Copper
Solid Copper Wire
Commercial / Industrial / Residential Rated
CSA certified: Rated for 600 Volts
PVC Insulation: High Heat Moisture Resistant (90 C/194 F)
All of our high quality products are brought to you by our Family owned and operated company.
We are located in Utah, "The Beehive State," here in America; where we have become a leading manufacturer and provider of high quality and durable electronic accessories along with OEM parts and replacements.
Our products are backed by our amazing warranty and a satisfaction guarantee, including 100% US based customer assistance.
