Description

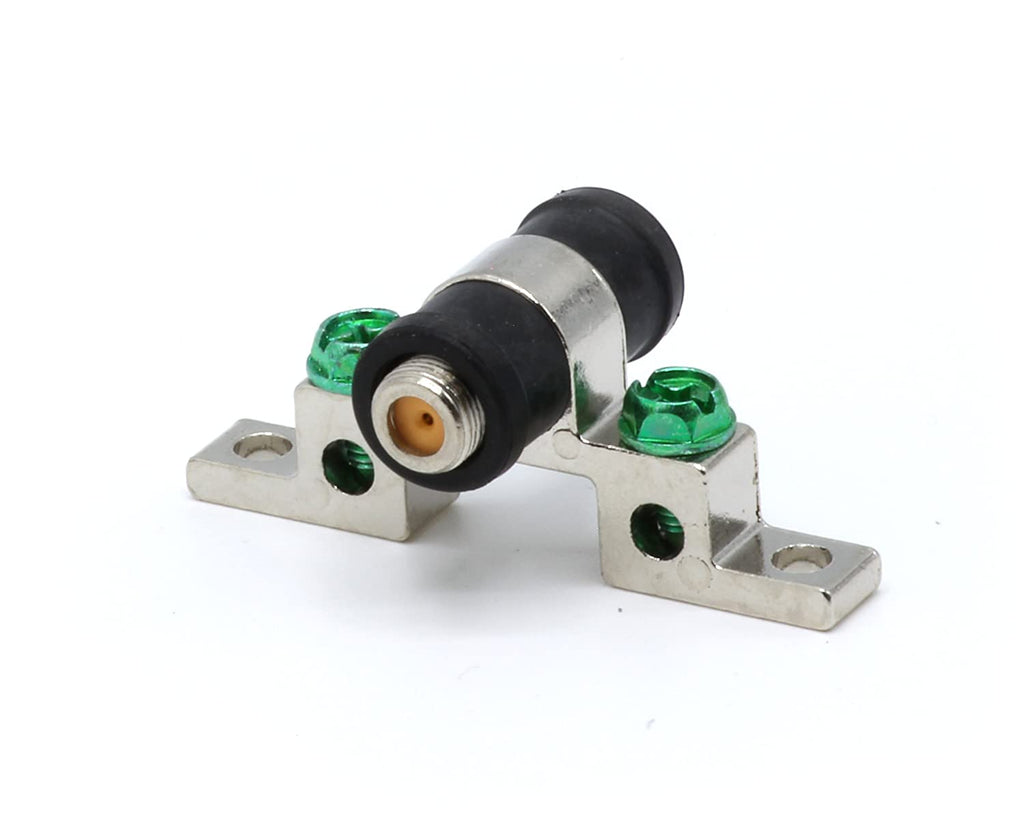

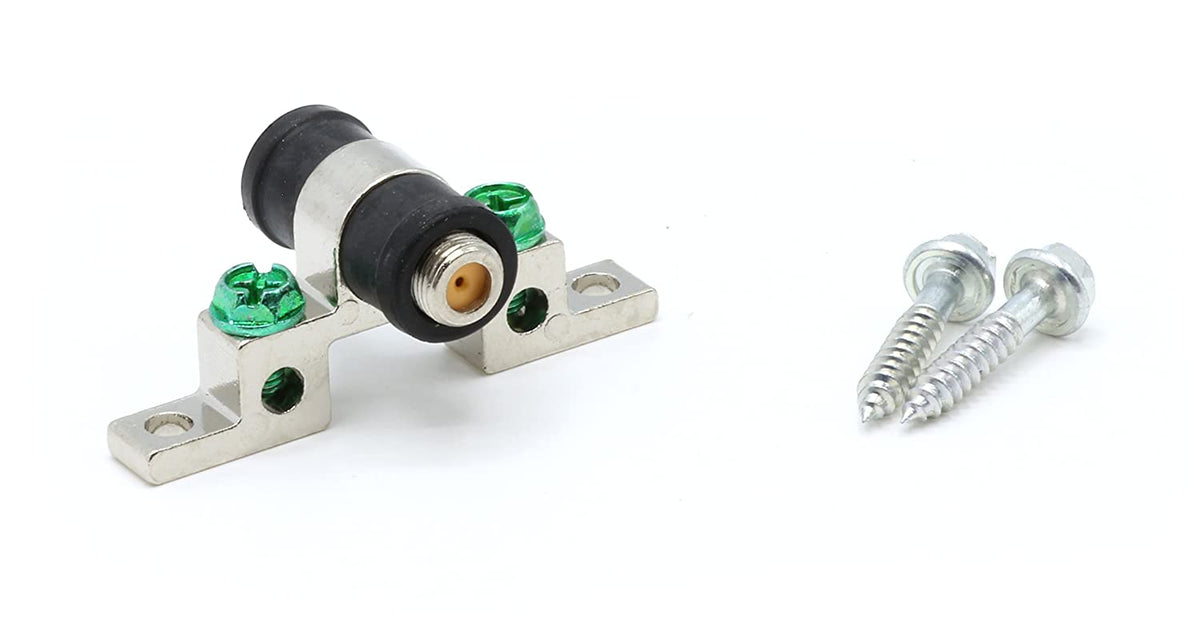

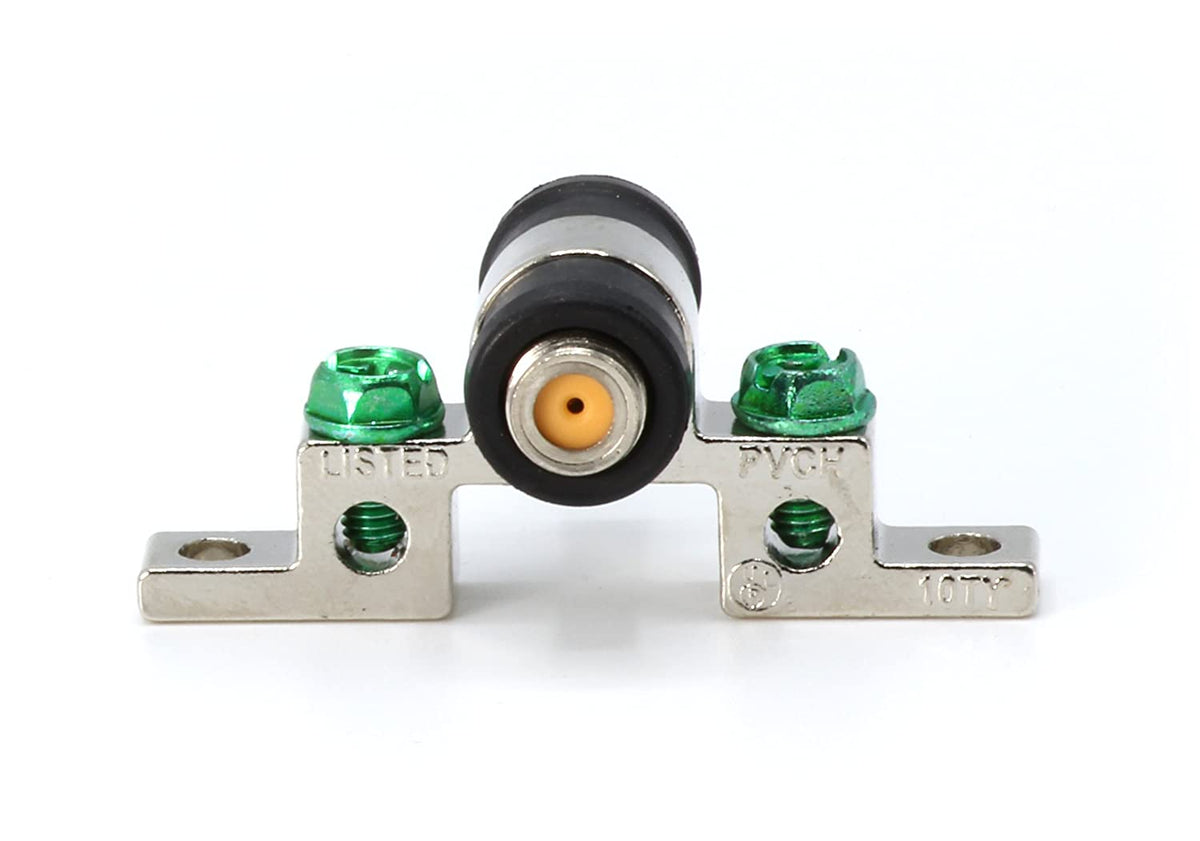

These High Quality and High Frequency Ground Blocks are available with 1 Port, 2 Port, and 4 Port configurations. They are not typical VHF/UHF blocks that may be found locally or from low quality supplies - these Blocks have High Quality Components, including: The center coax conductor indexes into a close-tolerance tube that is resilient (spring) brass and is gold plated. The close center-tube tolerance assures a tight connection, the gold plating assures a good electrical connection and the overall performance is greatly improved over standard designs. Features Include: SCTE outdoor compliant bonding block; One inch spacing between center of ports; UV resistant rubber weather seals provided; UL approved; Internal components designed for high frequency and low loss; Gold plated center conductor assures good connections; Resilient internal metals for dependable repeated insertion connections; Minimal insertion and return loss numbers; Two mounting screws are provided with each block. Specs: Insertion Loss: 100 dB; Bonding Effectiveness: <50 milli?; Operating Temperature: -40°C~+60°C. The ground block comes complete and we back our product 100%, with returns, as well as free technical support.
