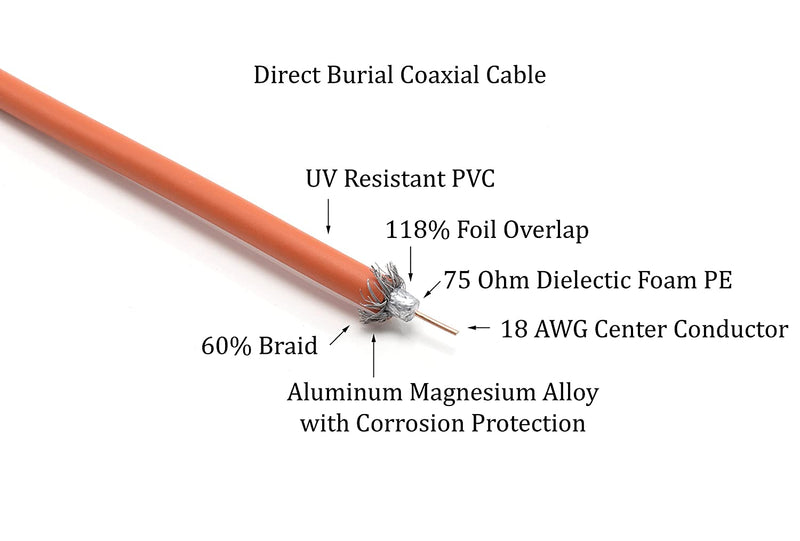

Solid Copper Conductor 18awg RG6 coaxial (direct burial) Cable with orange, high visible PVC jacket and two foil shield for soil acidity protection plus rubber weather boots for moisture tolerance
F-Connector coax connections including High Def TV/ CATV and Compatible with: Dish Network and DIRECTV and AT&T Satellite installations/ Cable internet modem/ outdoor video security camera/ long range WIFI antennas/ video signal transmission/ cellular signal booster and other high frequency digital audio

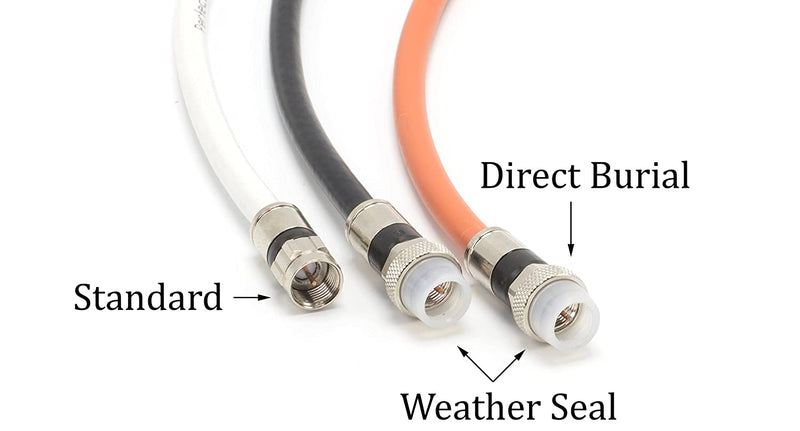

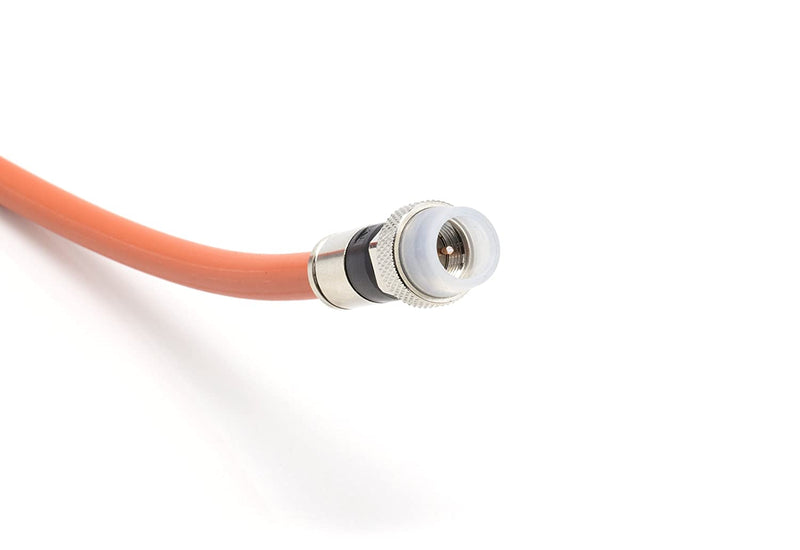

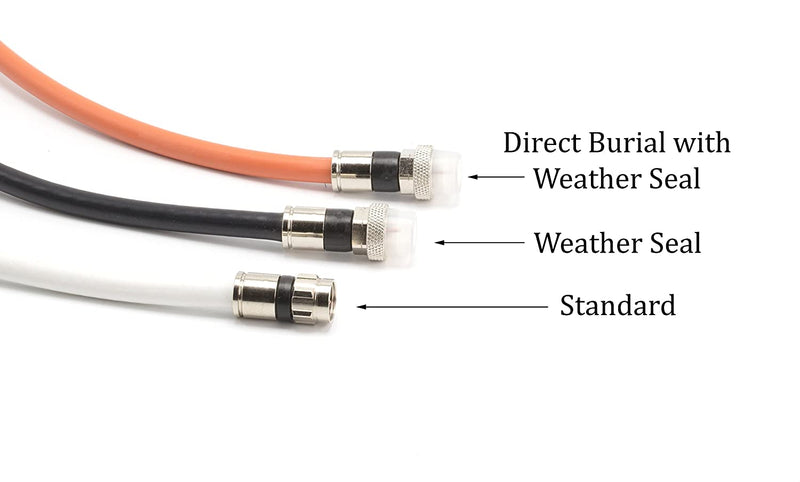

Features Anti-Corrosion Connectors Weather Proof, Booted Grommets Ends and a self collapsing design with anti rust high quality metal plated shells with an 18mm stroke length
Coated Braids help protect the core from extreme weather conditions, condensation and moisture, while providing shielding for low signal loss
Perfect For indoor, outdoor, conduit box, underground, and direct burial wire use
Cable End #1: Coaxial F Pin Male
Cable End #2: Coaxial F Pin Male
Cable Length: 150 Feet
Cable Length: 1800 Inches
Cable Length: 46 Meters
Cable Length: 50 Yards
Cable Shape: Round Cable
Capacitance: 16.2 Farad
Center Conductor Gauge: 18 AWG
Center Conductor: Solid Copper
Coaxial Frequency Range: 2.3 MHz - 3.0 GHz
Coaxial Size: 0.25 (1/4) Inch
Coaxial Size: RG6
Connection Split/Duplication: One to One (1:1)
DC Resistance: 6.54 Ohm
Full Cable Length: 150 Feet (45 Meter)
Impedance: 75 Ohms
Jacket Material: PVC
Maximum Frequency: 3.0 GHz
Output Voltage: 60 V
Shielding Material: Aluminum Magnesium Alloy
Temperature Range (C): -40 to 75 C
Temperature Range (F): -40 to 167 F
Type: Coaxial F Male-Male
UV Protected: Yes
If you're looking to get connected and stay connected, then search no further. THE CIMPLE CO Direct Burial Coaxial Cable provides you with a high quality and secure connection between your Dish, DirecTV satellite, cable box or terrestrial antenna, HDTV and many of your digital components. There's no longer a need to shop for different coaxial cables, as this versatile 100ft RG6 coax A/V cable comes complete with everything you need for long run, high powered digital installations for high-performance. Complete with rubber coaxial boots (weather boots), corrosion resistant connectors, and a self collapsing design, this superior RG6 cable is ideal for both, indoor and outdoor use, out in the open, or underground. It's completely up to you.
High Definition Digital Cable TV | Analog and Digital Cable and Modems
Cellular Boosters for Home and Business
Many other F-Connector Installations
Swept to 3.0Ghz
75Ohm Coaxial Cable
RG6 with 18AWG Solid Copper Center Conductor
UL Listed, ETL Listed, ROSH Compliant
80% Braid, 100% Foil
PVC Jacket with 0.25 Inch Outside Diameter
Attenuation 15.08dB @ 1Ghz, 26.89dB @ 3Ghz
